Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Gate
  • Pressure: Medium Pressure
  • Power: Manual
  • Material: Casting
  • Temperature of Media: --30~135℃
  • Media: Water
  • Port Size: DN50-DN600
  • Place of Origin: Tianjin, China (Mainland)

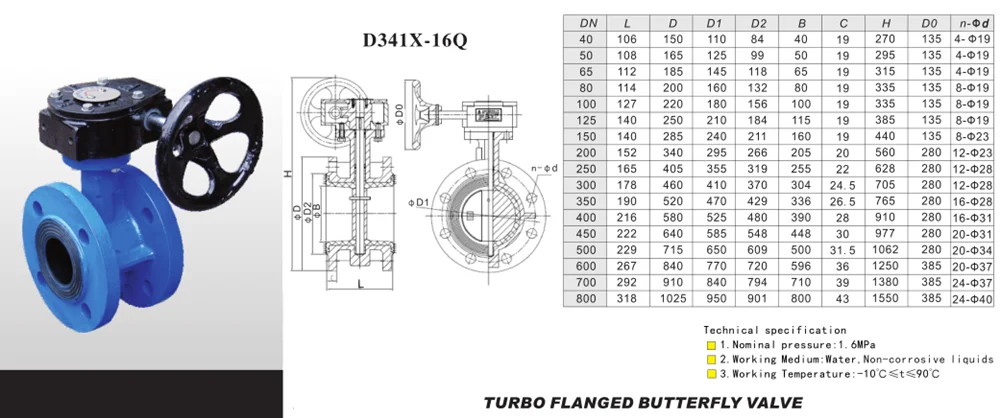

  • Model Number: D341X-16Q
  • Brand Name: BOTE
  • Application: General
  • Brand Name:: butterfly valve
  • Applicable media:: Water, sewage, oil, acid, organic compounds
  • Size:: DN50-500
  • Standard or Nonstandard:: Standard
  • Body material:: ductile cast iron End Connection: Lug
  • Color:: Yellow, blue, color, other colors.
  • pressure:: 1.0/1.6Mpa (1-2bar)
  • Type:: Extension rod
  • Packaging & Delivery:: Packaging Details standara exp wooden box with anti-moisture fim
  • Certificate: ISO9001

Packaging & Delivery

Packaging Details The wooden case or The cartons and container
Delivery Time 30-45day
Product Description

1.Characteristics of butterfly valve:simple structure,Long life, complete specifications, color diversity.

2. Operation: manual, worm wheel, pneumatic, electric motor。

3.Valve plate: cast iron, 304 stainless steel, 316 stainless steel。

4.Factory Direct。

5.Certificate:ISO9001.

6.Standard:DIN/ ANSI /BS/ JIS /CNS.

7.Valve Body:Nodular Cast Iron/Stainless Steel/Cast Steel.
8.Valve Seat:EPDM/PTFE
9.Warranty:2year
Pictures details

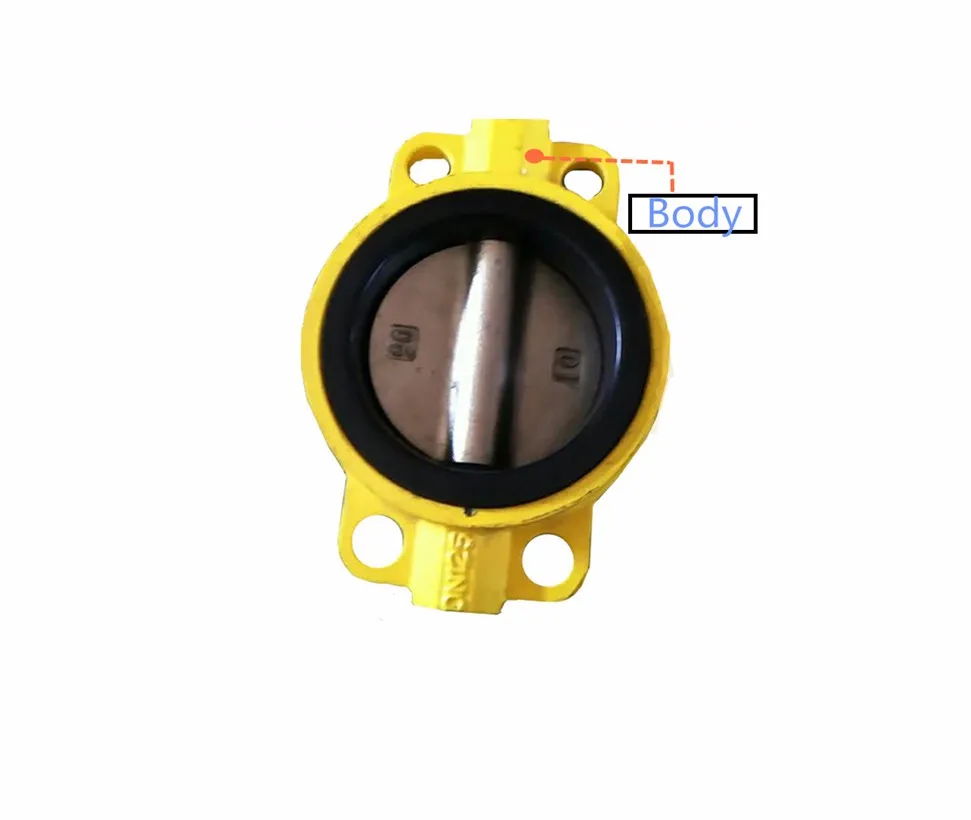

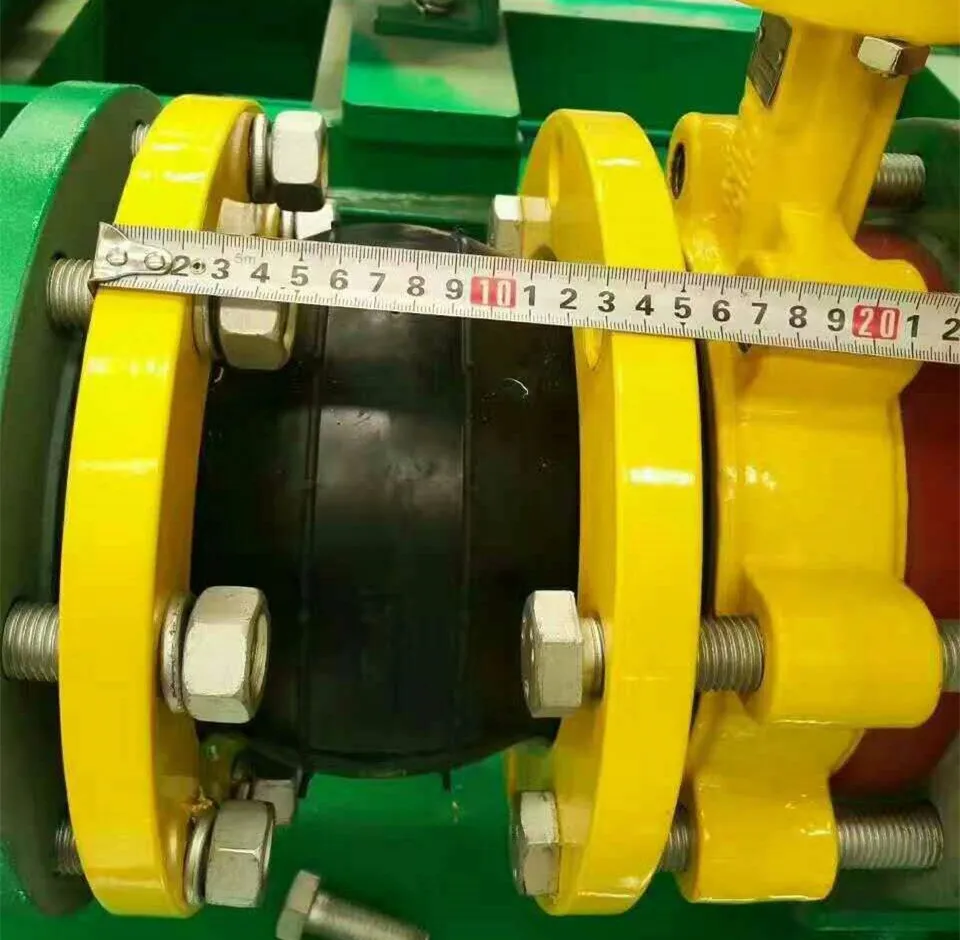

Vanriety  color body


Cast iron, ductile iron, cast steel,

aluminum bronze, aluminum alloy,

304, 316, 316 l, PVC etc

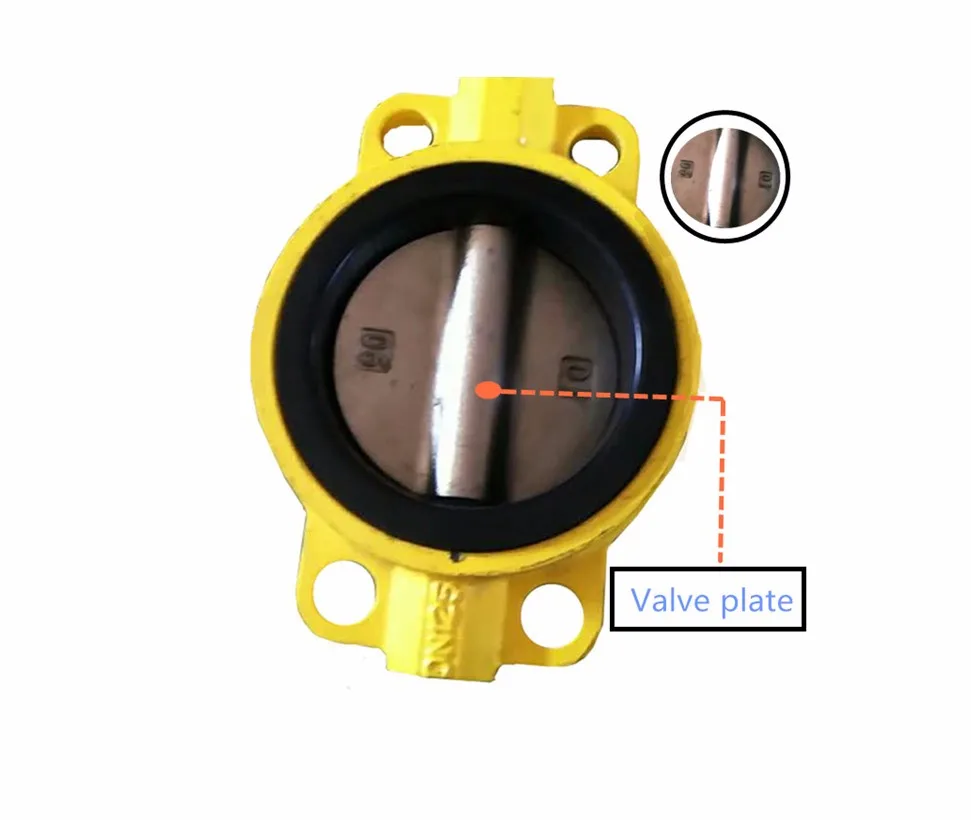

Ball board, stainless steel plate,

liner plate, liner teflon, nylon plate,

copper plate, 304, 316, 316L, 2507,

 1.4469, 1.4529

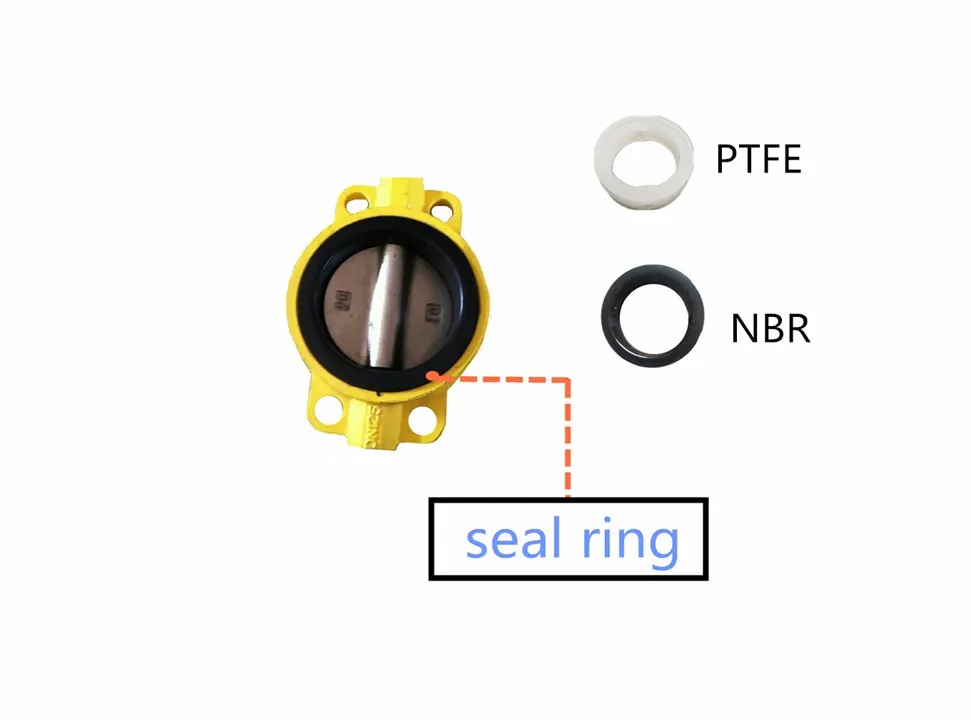

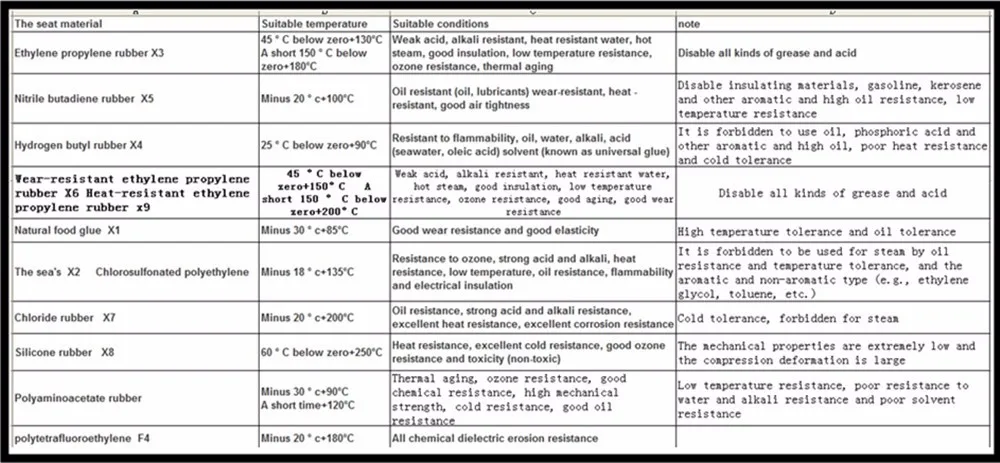

X1 (natural food glue), X2 (hypalon), X3 (ethylene propylene rubber) and X4 (fluorine butyl rubber), X5 (nitrile butadiene rubber), the X6 (wear-resisting rubber), X7 (fluorine rubber), by 8 (silicone rubber), X9 (heat-resistant ethylene propylene rubber), F4 (four fluorine rubber), fluorine rubber

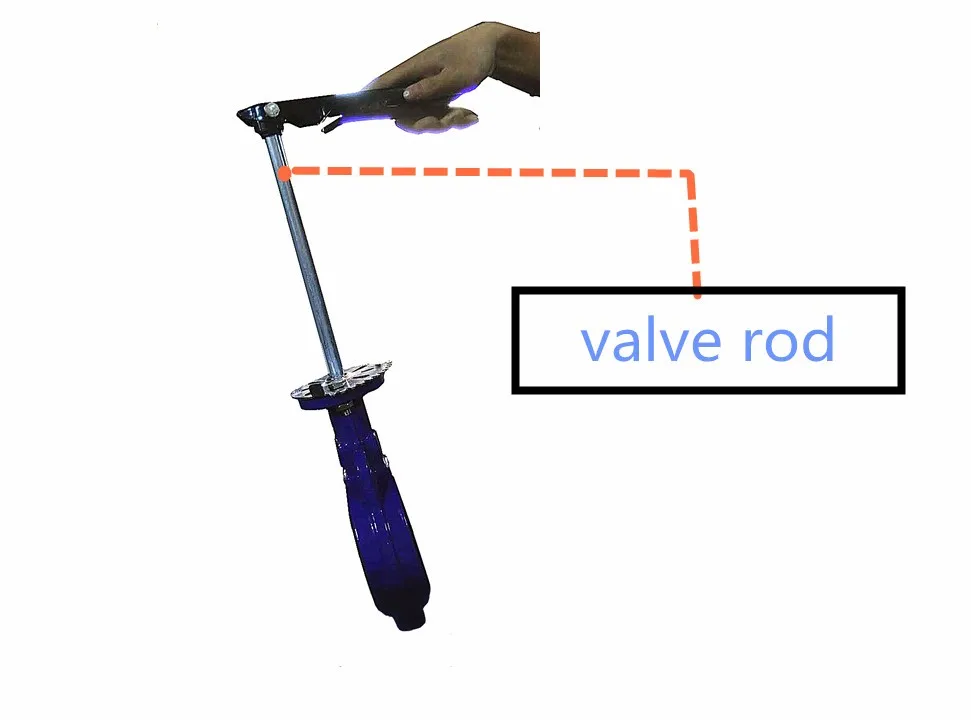

valve rod

45 #, stainless steel (416),

stainless steel (304, 316, 316L)

Features of D71X handle dual butterfly valve:

 1.  The disc plate adopts spherical machining method, plate flatness error is small, the valve opening and closing low torque, torque value good consistency, can be controlled within the scope of the standard torque value plus or minus 5, very suitable for mass assembly electric pneumatic device.

2. The valve seat sealing surface seal size is according to GB, ISO, AMST, JIS standard determination of the spot welding flange diameter maximum size, which is the valve and pipeline connection does not have special requirements, all can use flat welding flange, versatility, so as to thoroughly solve the center line of soft sealing butterfly valve flange connection type and diameter is demanding.

3. The plate and valve shaft are connected by a small, semi-axial and small modular spline structure, and the upper valve shaft is stronger than the non-pin valve shaft.The upper valve shaft seal is made of rubber sealing ring and nylon support sleeve structure. The lower shaft seal adopts the structure of two O - type rubber ring and solid seal grease. The medium will not leak from the valve shaft.

4. The valve flange holes covers standard, and high precision positioning hole, the other seat and body sulfide, control requirements for the seat compression deformation is not high, thus not demanding for installation personnel quality, quick operation, convenient installation of high efficiency.


The D71X handle is installed in the diameter of the pipe. Cylindrical channels in butterfly valve body, disc disc around the axis of rotation, rotation Angle for 0 ° and 90 °, and between the rotation to 90 °, the valve is fully open.

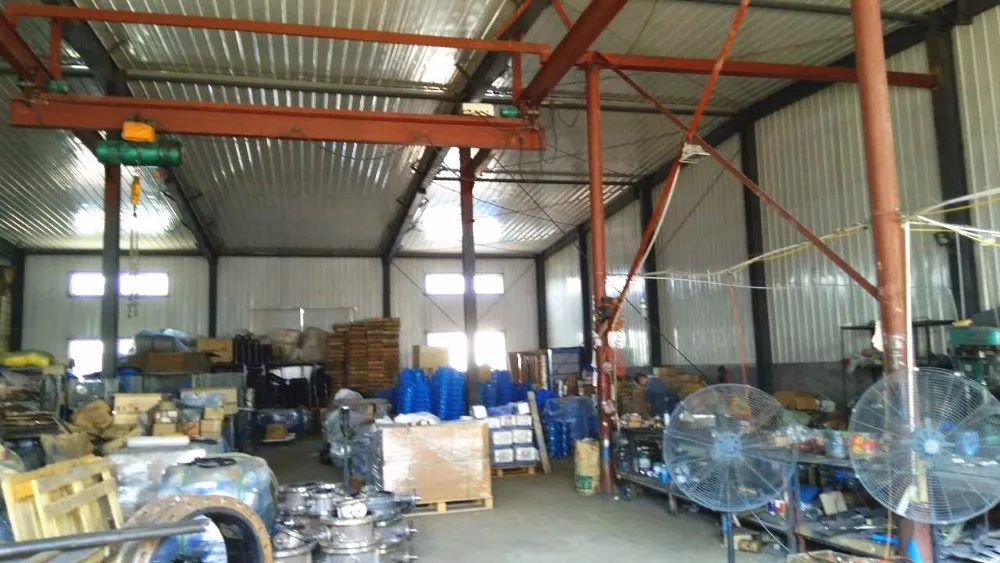

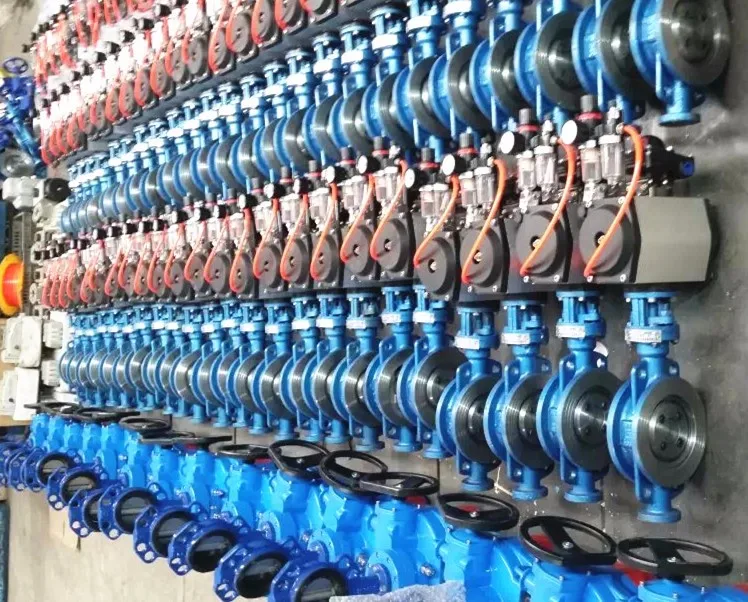

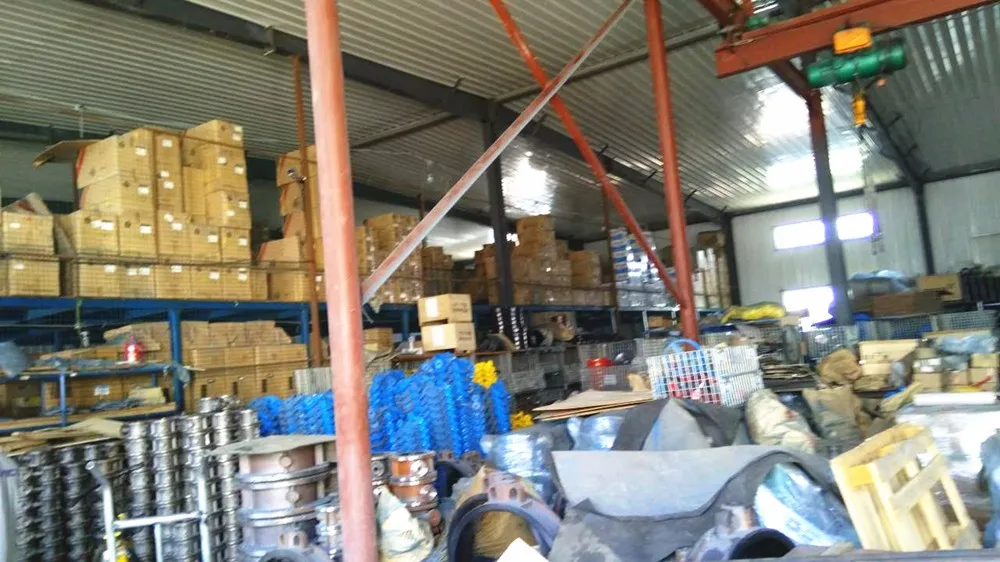

Our warehouse

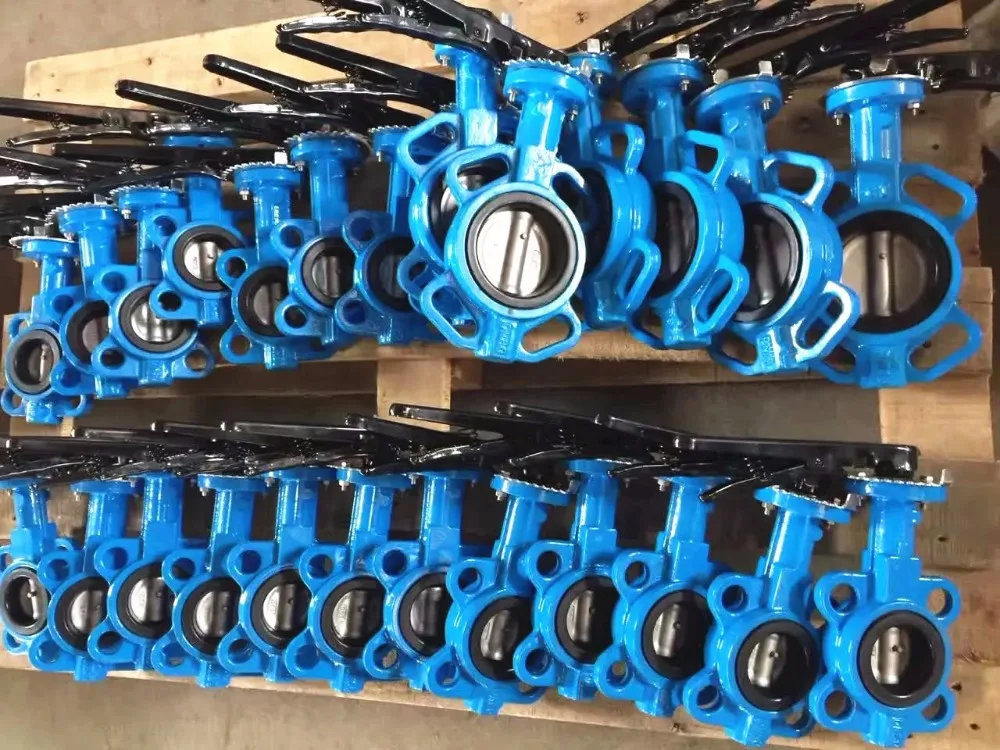

Warehouse corner

Our Warehouse

Team

Our Team

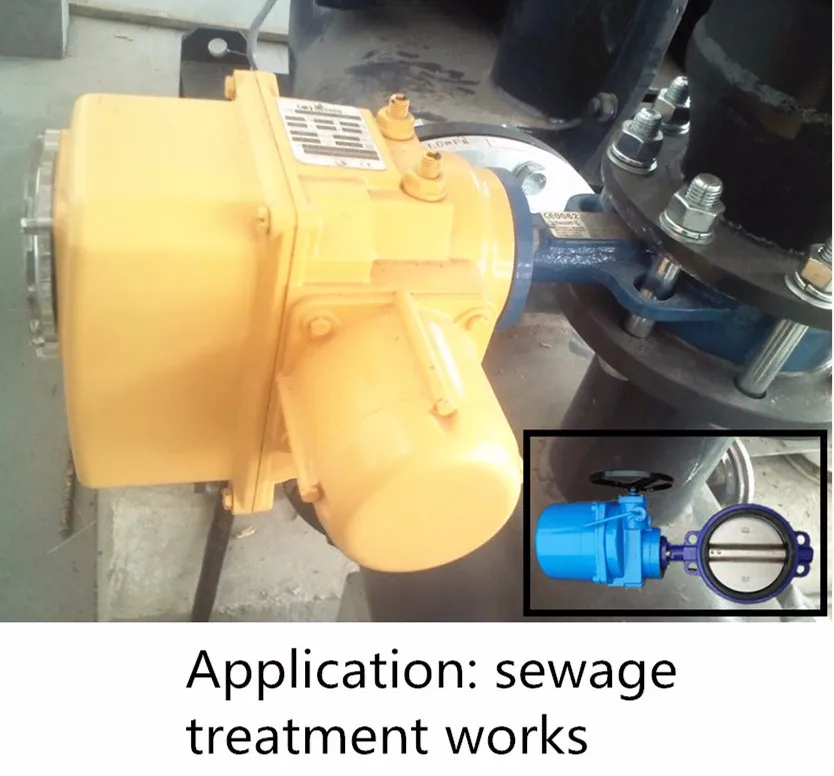

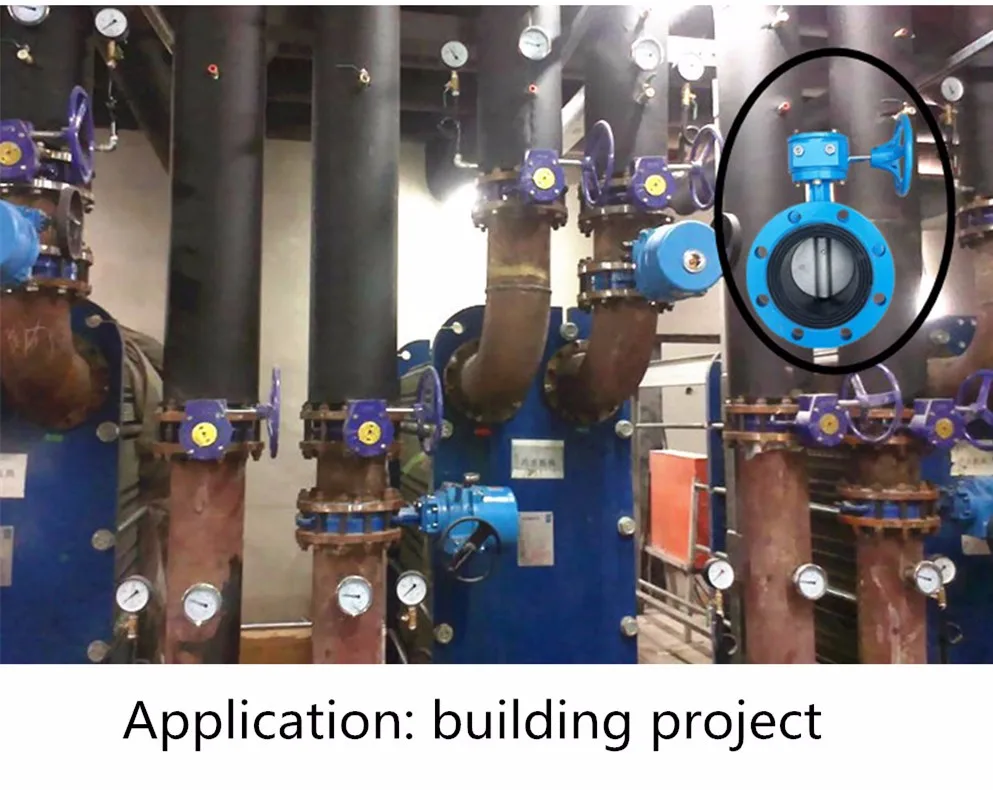

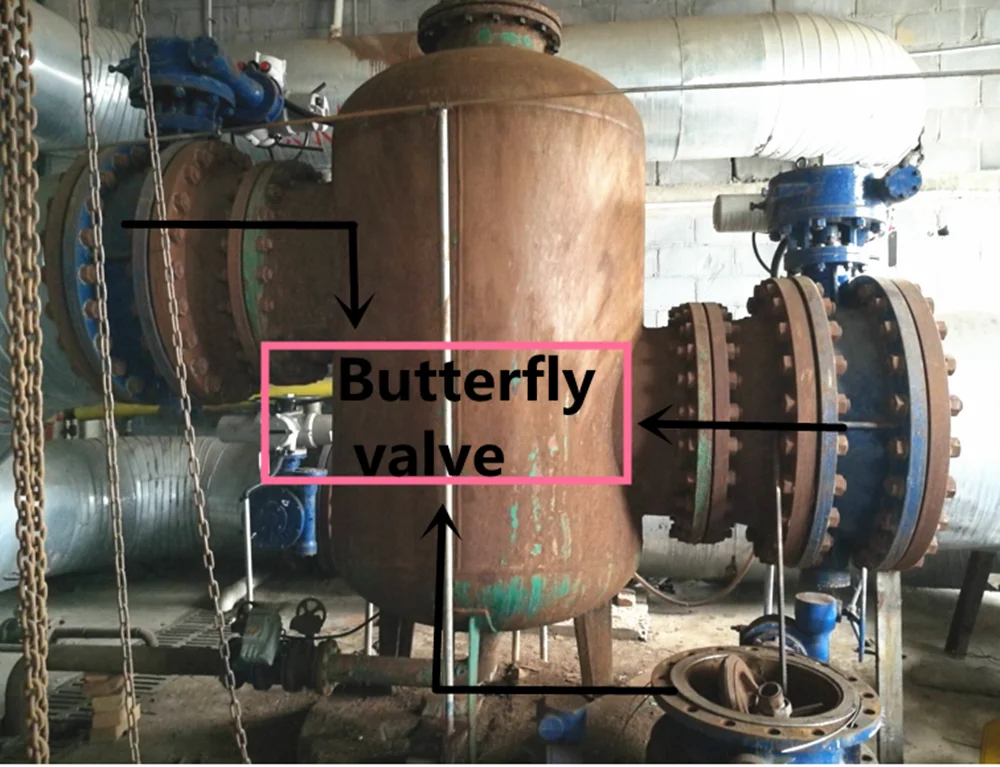

Range of application

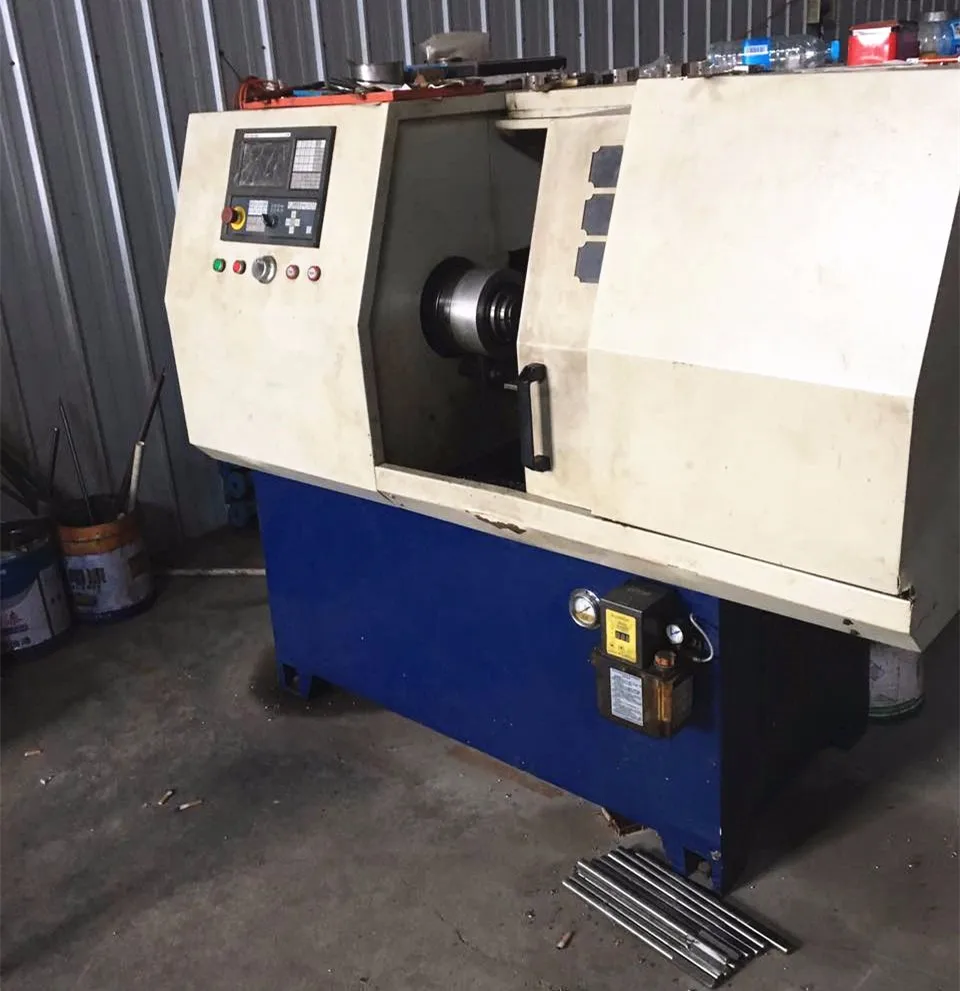

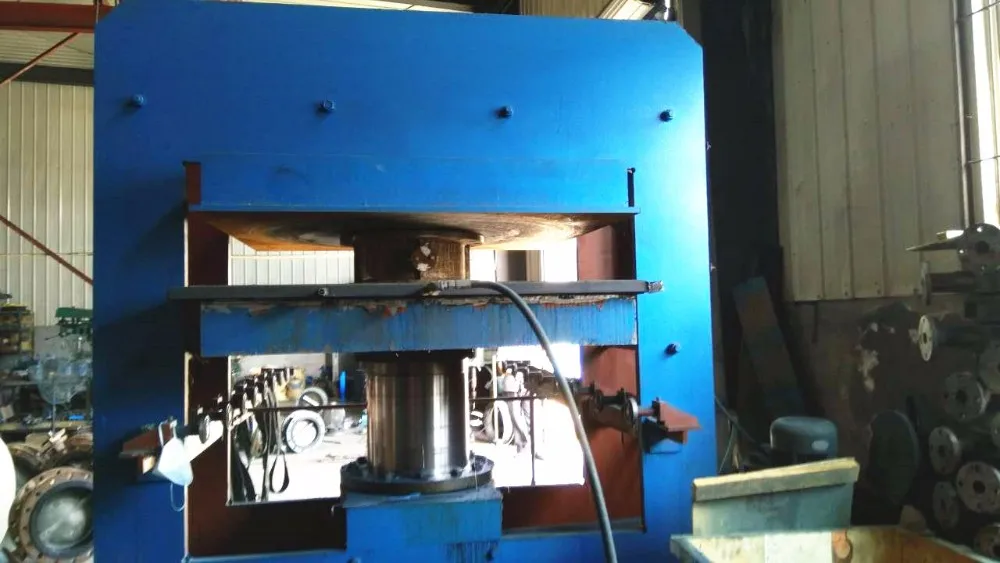

Our  factory

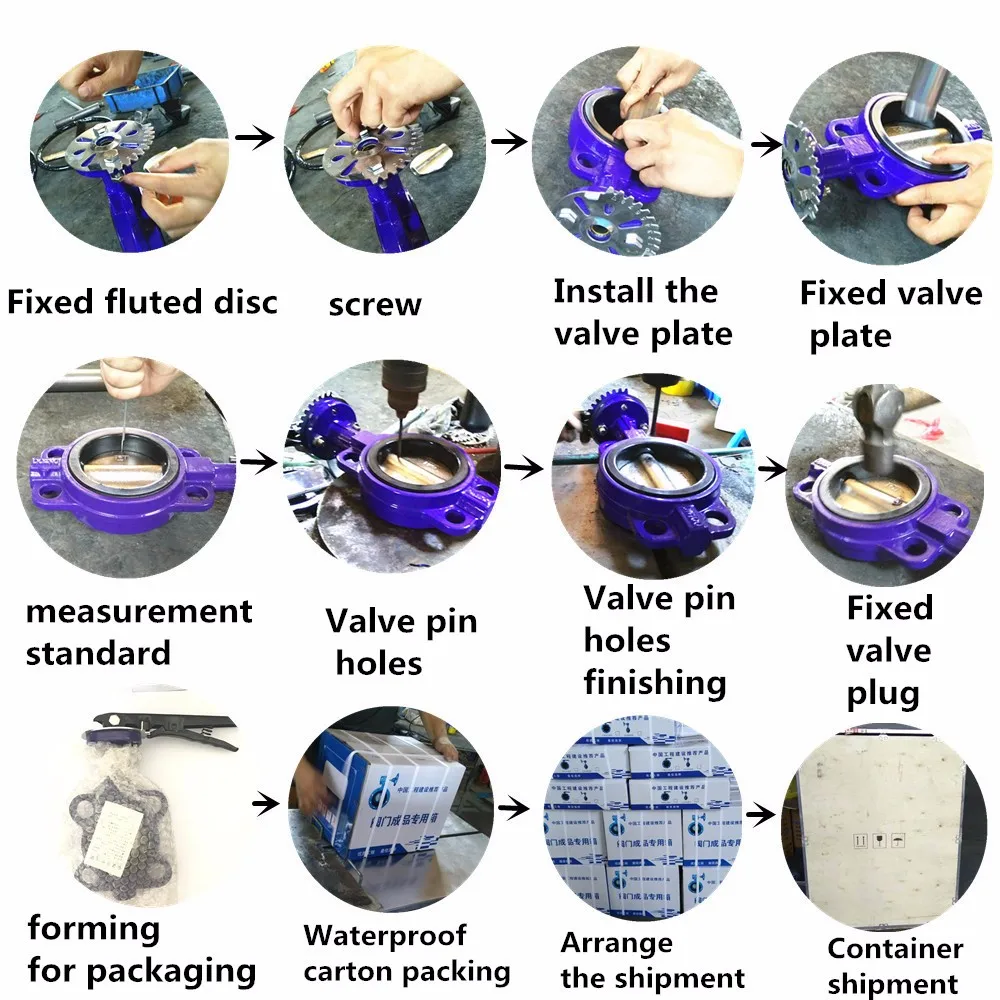

Production research
FAQ


Hello, I am a Chinese trading company. I hope to make payment on the Internet platform for transaction and Internet credit guarantee. Please feel free to purchase.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 30-45days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Such as,Sample fee, small order can be paid by paypal or western union,Tens of thousands of dollars in orders,with the way of T/T.
